Weird Stuff We Don't Need

But you might find useful
  And at a great price .. . .
Goddard Logo

Surplus Electronics Components - unused, old stock items at a great price

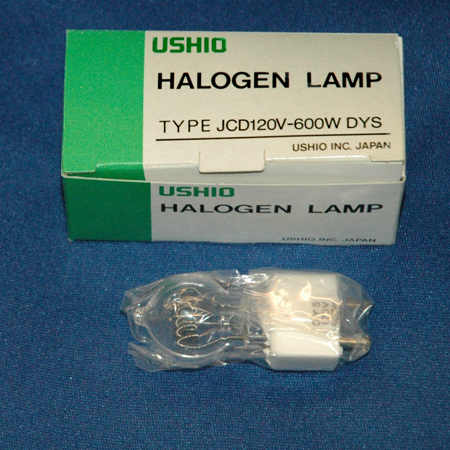

DYS DYS

                  projection lampprojection Lamp

As pictured, unused but old stock
We have at least 10 pcc.

$2.50 each plus shipping

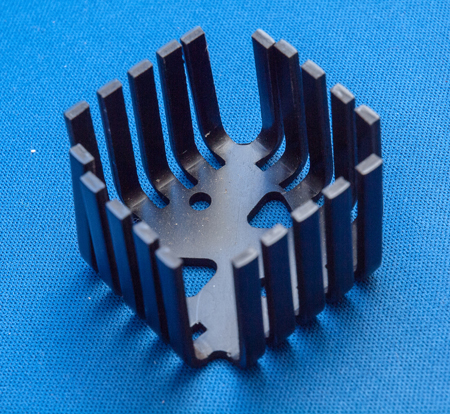

HeaHeat sinkk photot Sink

Aavid Thermalloy heatsinks.Model 508322B00000.  Current price in lots of 3000 is $3.29.  Will sell for $1.75.  We have at least 50 pcs.  Shipping additional

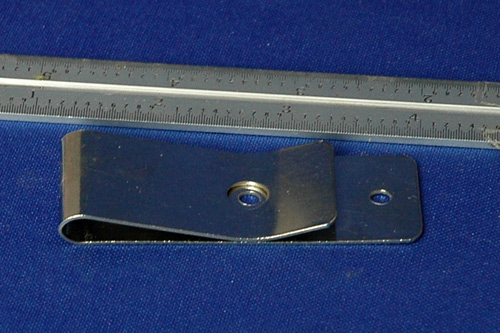

Steel Belt Clip

Steel Belt

              clip photoA steel belt clip that actually stays on your belt.
Designed for the Chaos Audio beltpack.
We have a surplus of these belt clips, and you can
buy them for $2.75 each.  Contact us for quantity
discount.

Basic clip is 2.7"x1.0"  You can view a dimensioned drawing with this link


Hall Effect proximity switches

Hall Effect proximity switches made by Namco, purchased for a project that ended up not using them.  Brand new switches in their original packaging.  Still in current production - and if you buy them from us, they'll cost you a LOT less!

Description:  Namco Control #ET11022210Picture of

                proximity sensor
  • tube diameter - 12 mm
  • tube length - 78 mm
  • sense distance - 2 mm
  • max. switching frequency - 700 hz
  • shielded
  • 10-30 volts DC
  • max. load current - 400 mA
  • normally closed NPN sinking output
The current price is over $125. per switch.  We're asking $20. plus shipping.  We have 15 pieces, and we're selling them individually.
Please contact us directly to purchase.  We'll calculate the UPS for you.

Transformers, 120 VAC - 20 V Center Tapppicture of signal 241-7-20 xformered

Signal Transformer, 241-7-20.  56 VA transformer with a 20 volt center
tapped secondary.  Current production piece, old stock that's been sitting on
our shelves.  Mounting centers are 3-1/8"; weight is 1.7 lbs unpacked.
12 pieces available for $10.each plus UPS.












Transformers, 120 VAC - 20 V Center Tappedpicture of signal 241-8-20 xformer


Signal Transformer, 241-8-20.  100 VA transformer with a 20 volt center tapp3ed secondary.  Current production piece, old stock that's been sitting on our shelves.  Mounting centers are 3-9/16"; weight is 2.75 lb unpacked
6 pieces available for $18. each plus UPS.







Slide Pots with Knob - Great for Piher slide potConsoles

These PCB mount slide pots have a unique covered track design that cuts down on the dirt and foreign matter that contaminate the track.  Great for consoles!
Each piece has eight PCB mounting terminals - one for each end to the resistive track, two for the wiper, and four for mechanical support.
$1.00 each plus UPS - call us for quantity pricing



Second photo

Teac Audio FaderTeac Audio

                  Fader

Large slide fader with very smooth action.  10k audio taper potentiometer.  Units approx. 1" wide with overall length of
5.3".  Travel of 4".  Unused, old stock.  A bargain at $7. each
plus shipping.

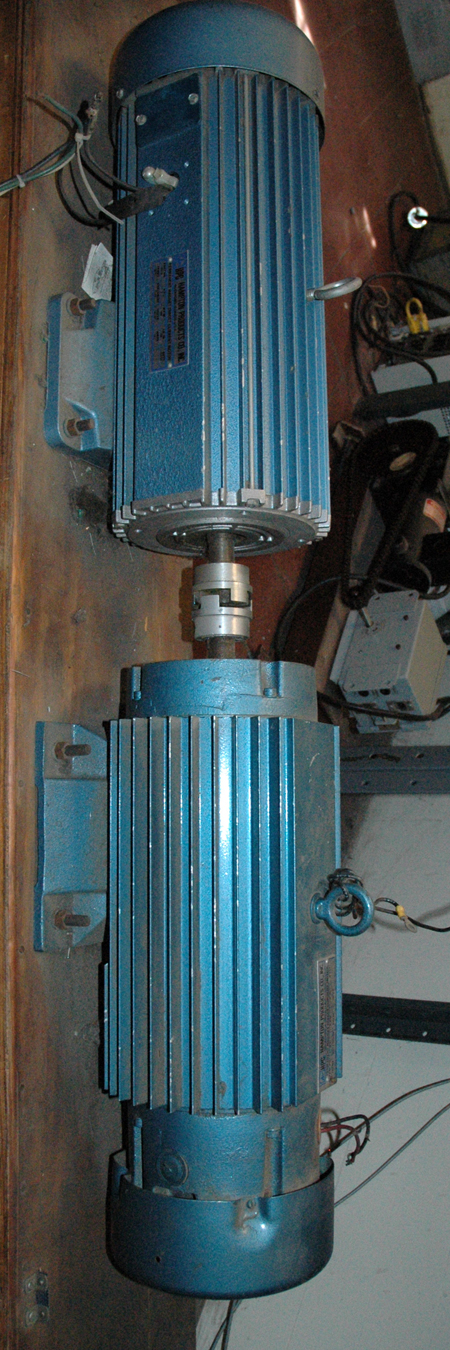

# HP  PM Motor 1800 RPM3 HP motors, Permanent Magnet, 180 Volt 1800 RPM- Hampton Products
Motor 1
You are buying one of the motors shown to the right, the Top one.  This motor was used as part of a test setup, and has very few hours of operation.
Specifications:
Model:  03219
Frame:  182BC
Horsepower:  3
Enclosure:  TEFC
RPM: 1800
Volts:  0-180
Torque (pounds/inch): 108
Amps:  13.7
Duty: Continuous
Weight:  approx. 75 lbs.
$300 or best offer
Please contact us for shipping information and costs.


Motor 2

You are buying one of the motors shown to the right, the Bottom one.  This motor was used as part of a test setup, and has very few hours of operation.
Specifications:
Model:  3319
Frame:  184A
Horsepower:  3
Enclosure:  TEFC
RPM: 1800
Volts:  0-180
Torque (pounds/inch): 108
Amps:  15.5
Duty: Continuous
Weight:  approx. 75 lbs.
$300 or best offer
Please contact us for shipping information and costs
